Surface Grinder
Double Disc Grinder
(KVD Series Vertical Spindle)Double Disc Grinder
(HD Series Horizontal Spindle )Single Disc Grinder
(R Series)
-
Double Disc Grinder
(KVD Series Vertical Spindle)
Model KVD200 Grinding Capacity O.D.（Max.）[mm] φ10 T（Max.）［mm］ 6 G.W. Size（㎜） O.D.（Max.）[mm] φ200 Floor Space W×D [mm] 1,100×1,400 Machine Weight [Kg] 1,800 Double disc grinder is ideal for grinding small workpieces on both sides.
Double disc grinder is ideal for grinding small workpieces on both sides.
Product Specifications Download

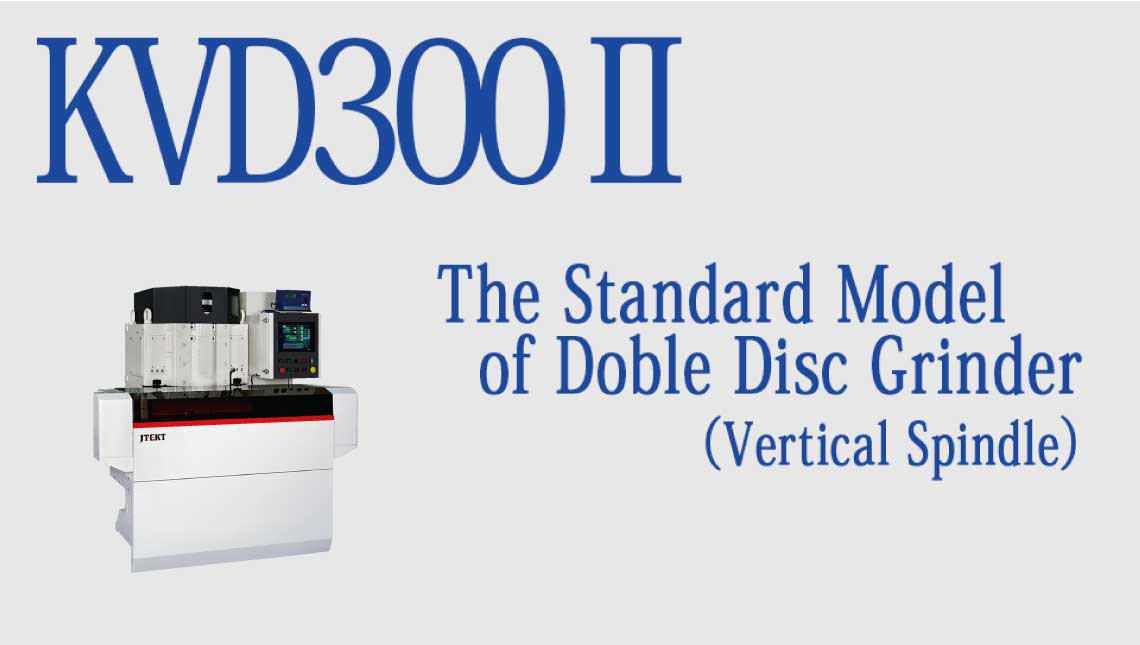

Model KVD300Ⅱ Grinding Capacity O.D.（Max.）[mm] φ100 T（Max.）［mm］ 50 G.W. Size（㎜） O.D.（Max.）[mm] φ305 Floor Space W×D [mm] 1,200×1,500 Machine Weight [Kg] 4,000 The standard double disc grinder is for difficult-to-grind materials and ideal for CBN.
The standard double disc grinder is for difficult-to-grind materials and ideal for CBN.
Product Specifications Download
Model KVD350 KVD450Ⅱ Grinding Capacity O.D.（Max.）[mm] φ150 φ200 T（Max.）［mm］ 50 G.W. Size
といし寸法（㎜）O.D.（Max.）[mm] φ355 φ450 Floor Space W×D [mm] 1,050×1,925 1,625×2,200 Machine Weight [Kg] 4,500 4,800 High rigidity and better thermal balance with the box structured bed.
Angled the coolant flow pathway and widened the drain to prevent sludge build up.
Maintenance can be done through the side doors of the machine.High rigidity and better thermal balance with the box structured bed.
Angled the coolant flow pathway and widened the drain to prevent sludge build up.
Maintenance can be done through the side doors of the machine.The KVD350,with its "Metal-Bonded Wheel"and"High-rigidity due to the Box Structure Bed" is a powerful tool for grinding sintered alloy. The metal-bonded wheel can be dressed inside the machine and the dressing
.
High efficiency by shortening the dress interval.
Model KVD580 KVD760 Grinding Capacity O.D.（Max.）[mm] φ200 φ220 T（Max.）［mm］ 50 G.W. Size（㎜） O.D.（Max.）[mm] φ585 φ760 Floor Space W×D [mm] 1,900×2,000 1,900×2,200 Machine Weight [Kg] 8,000 10,000 Heavy-duty grinding and high efficiency for double-sided grinding of large workpieces.
Automated transportation and measurement of workpiece can be done by various grinders.Heavy-duty grinding and high efficiency for double-sided grinding of large workpieces.
Product Specifications Download
Automated transportation and measurement of workpiece can be done by various grinders. -
Double Disc Grinder
(HD Series Horizontal Spindle )
Model HD3 Grinding Capacity O.D.（Max.）[mm] φ50 T（Max.）［mm］ 25 G.W. Size（㎜） O.D.（Max.）[mm] φ305 Floor Space W×D [mm] 2,360×1,420 Machine Weight [Kg] 3,000 Compact size, ideal for CBN wheel.
Product Specifications Download
Model HD5 Grinding Capacity O.D.（Max.）[mm] φ150 T（Max.）［mm］ 50 G.W. Size（㎜） O.D.（Max.）[mm] φ585 Floor Space W×D [mm] 3,300×3,155 Machine Weight [Kg] 7,000 Wide variation with excellent durability and heavy-duty grinding.
Product Specifications Download
Model HD7 HD10 Grinding Capacity O.D.（Max.）[mm] φ250 φ300 T（Max.）［mm］ 80 100 G.W. Size（㎜） O.D.（Max.）[mm] φ760
φ1,065 Floor Space W×D [mm] 3,570×3,860 3,880×3,780 Machine Weight [Kg] 11,000 15,000 High-rigidity type for machining large parts.
Product Specifications Download -
Single Disc Grinder
(R Series)
Model R011
（metal material）R011
（SiC・GaN, etc.）Grinding Capacity O.D.（Max.）[mm] φ20 φ50.8（2inch） T（Max.）［mm］ 30 2.5 G.W. Size（㎜） O.D.（Max.）[mm] φ40 φ40～65 Floor Space W×D [mm] 600×1,465 600×1,465 Machine Weight [Kg] 1,000 1,100 Ultra compact surface grinder with a front width of 600mm, ideal for grinding small parts.
Product Specifications Download
The lineup includes a metal grinding type and a hard-brittle material grinding type for SiC and GaN. Continuous grinding is possible in combination with the Ultra compact centerless grinder C1003.
Model R421 R422 R431 Grinding Capacity O.D.（Max.）[mm] φ100 T（Max.）［mm］ 50 G.W. Size（㎜） O.D.（Max.）[mm] φ180 φ305 Floor Space W×D [mm] 1,300×1,400 1,500×1,400 1,400×1,500 Machine Weight [Kg] 2,500 3,000 4,000 Small workpiece can be mirror-ground with higher accuracy than lapping machine.
Product Specifications Download
Model R631 R632 Grinding Capacity O.D.（Max.）[mm] φ125 T（Max.）［mm］ 35 G.W. Size（㎜） O.D.（Max.）[mm] φ305 Floor Space W×D [mm] 1,500×2,250 Machine Weight [Kg] 6,500 A wide range of high-precision processing and mirror grinding from thin components to home appliances, automobiles and IT parts.
Product Specifications Download
Model RV1 RV2 Grinding Capacity O.D.（Max.）[mm] φ300 T（Max.）［mm］ 300 G.W. Size（㎜） O.D.（Max.）[mm] φ455 Floor Space W×D [mm] 2,200×2,600 Machine Weight [Kg] 10,000 Fully-automated production with robot transter and dimensional measurement are possible, ideal for automotive and home appliance parts.
Product Specifications Download
