Centerless Grinder

Home>Product Information>Various Grinders>Centerless Grinder

Centerless Grinder

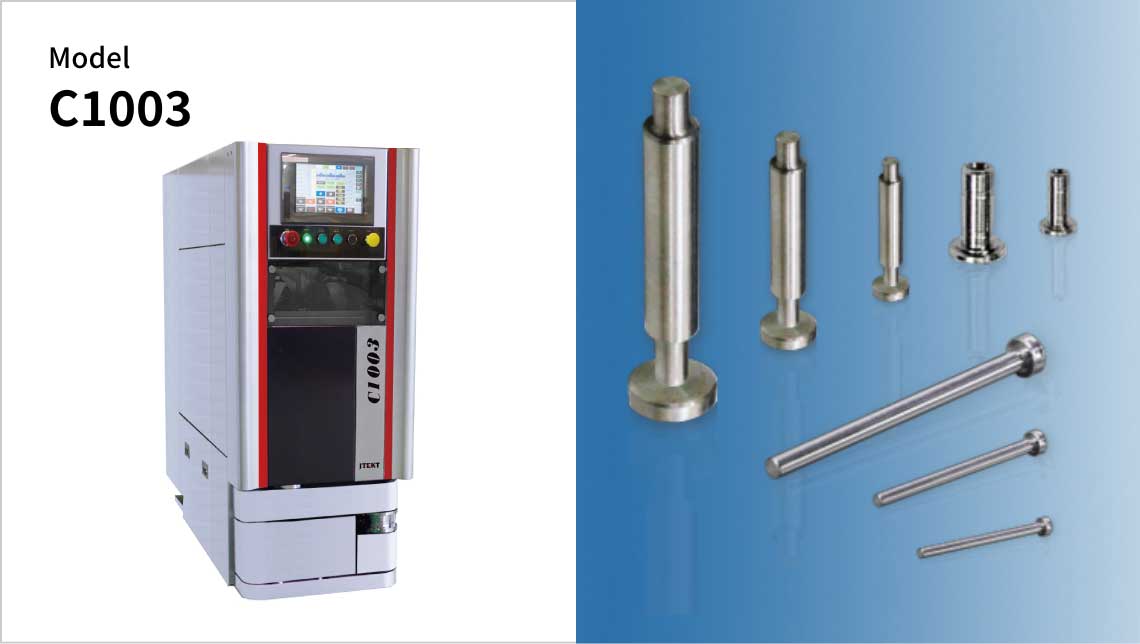

Model		C1003
Grinding Capacity	O.D.（Max.）[mm]	φ5
G.W. Size（㎜）	O.D.（Max.）[mm]	φ100
G.W. Size（㎜）	Width［mm］	30
Floor Space	W×D [mm]	600×1,465
Machine Weight	[Kg]	1,000

Auxiliary equipment such as a coolant tank is all-in-one inside the machine. Center dressing system allows fully automatic dressing of the grinding wheel and regulating wheel .And automatic center height setting. One-touch fine adjustment by NC blade up/down mechanism. Same grinding wheel for outer diameter end-face. Continuous grinding is possible by connecting with "Ultra Compact Surface Grinder R011"

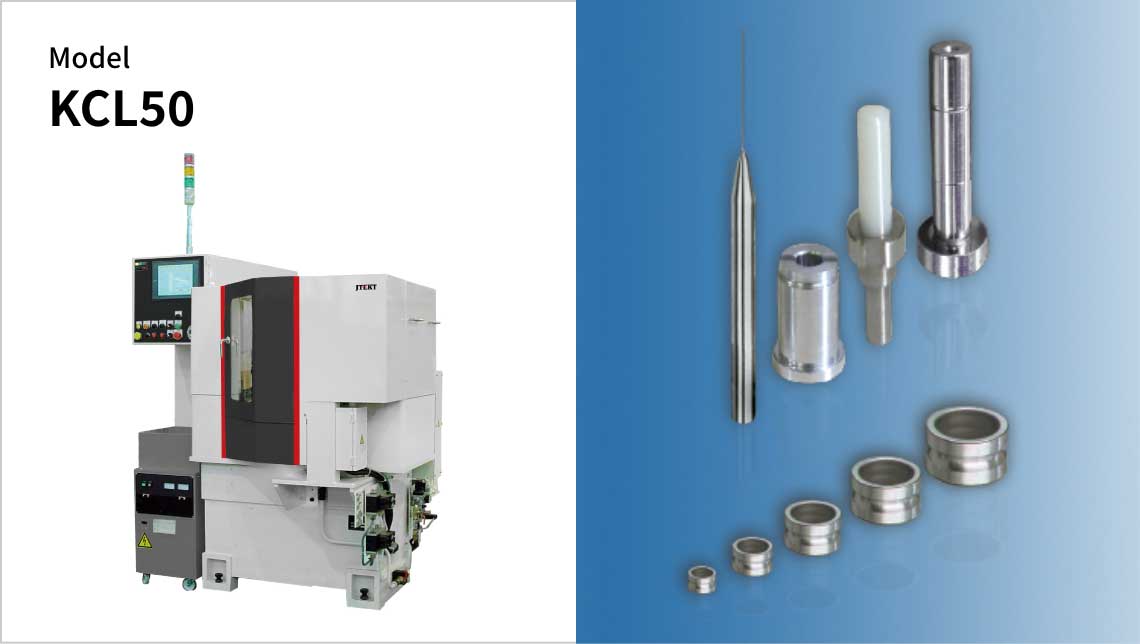

Model		KCL50	KCL50S
Grinding Capacity	O.D.(Min.～Max.)[mm]	φ0.2～φ5.0
G.W. Size（㎜）	O.D.(Max.～Min.)[mm]	φ150～φ120
G.W. Size（㎜）	Width［mm］	50	30
Floor Space	W×D [mm]	1,600×1,580
Machine Weight	[Kg]	1,600

Submicron grinding of ultra-small diameter is possible.
Grinding φ3.175mm to φ0.1mm in one pass and alignment with large diameter is 0.1μm or less.

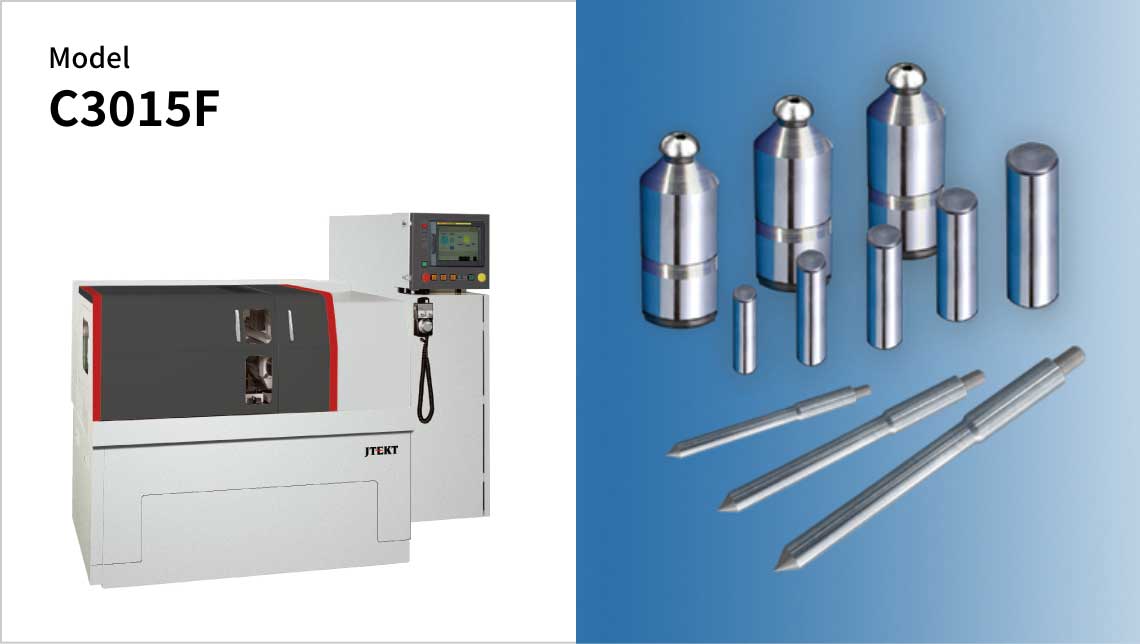

Model		C3015F
Grinding Capacity	O.D.(Min.～Max.)[mm]	φ0.8～φ25
G.W. Size（㎜）	O.D.(Max.～Min.)[mm]	φ305～φ225
G.W. Size（㎜）	Width［mm］	150
Floor Space	W×D [mm]	1,850×900
Machine Weight	[Kg]	3,500

Appropriate grinding conditions are indicated on the display by specifying the diameter of the workpiece with the setup guidance.
No need to warm up by minimizing thermal displacement. Grinding accuracy can be kept by automatically changing grinding conditions with a laser sizing device.

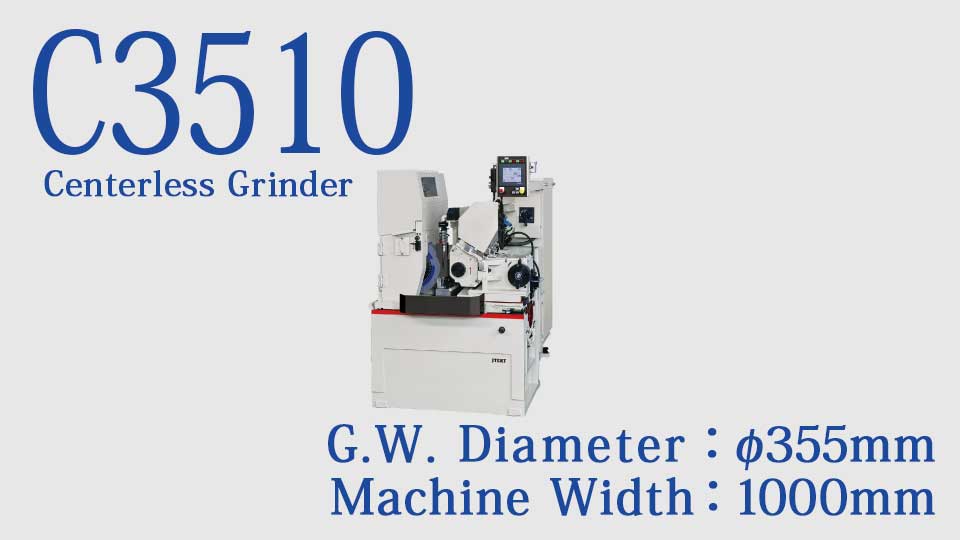

Model		C3510
Grinding Capacity	O.D.(Min.～Max.)[mm]	φ1.0～φ10
G.W. Size（㎜）	O.D.(Max.～Min.)[mm]	φ355～φ255
G.W. Size（㎜）	Width［mm］	100
Floor Space	W×D [mm]	1,000×1,620
Machine Weight	[Kg]	2,500

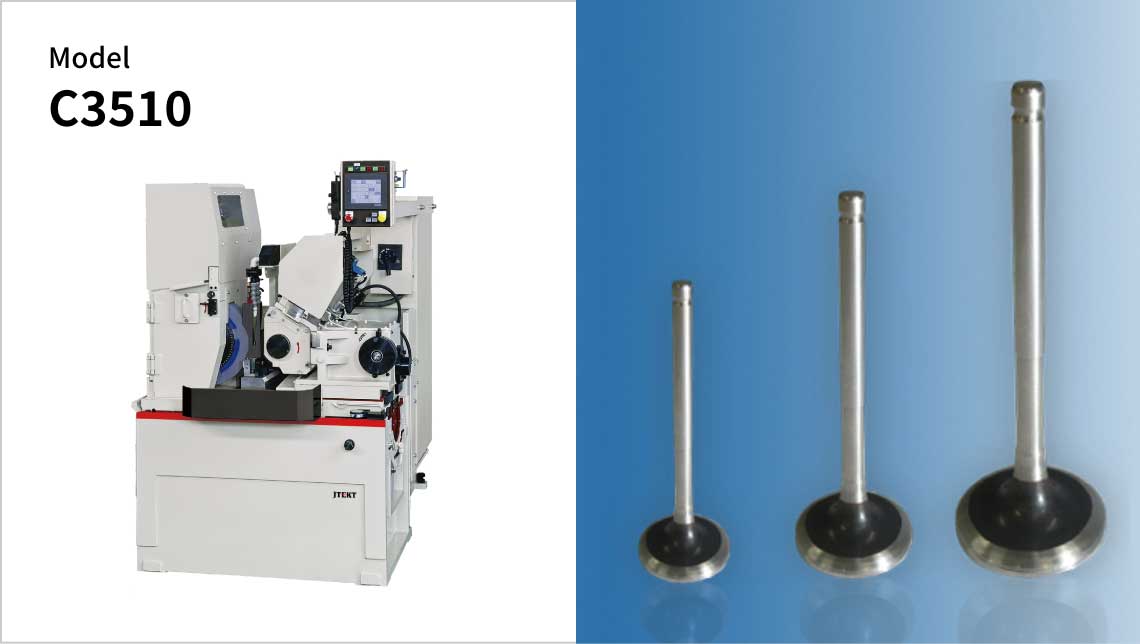

For grinding engine valves, the valve stem is ground with a Centerless Grinder and the valve head (flat face) is mirror-ground with an R series surface grinder.

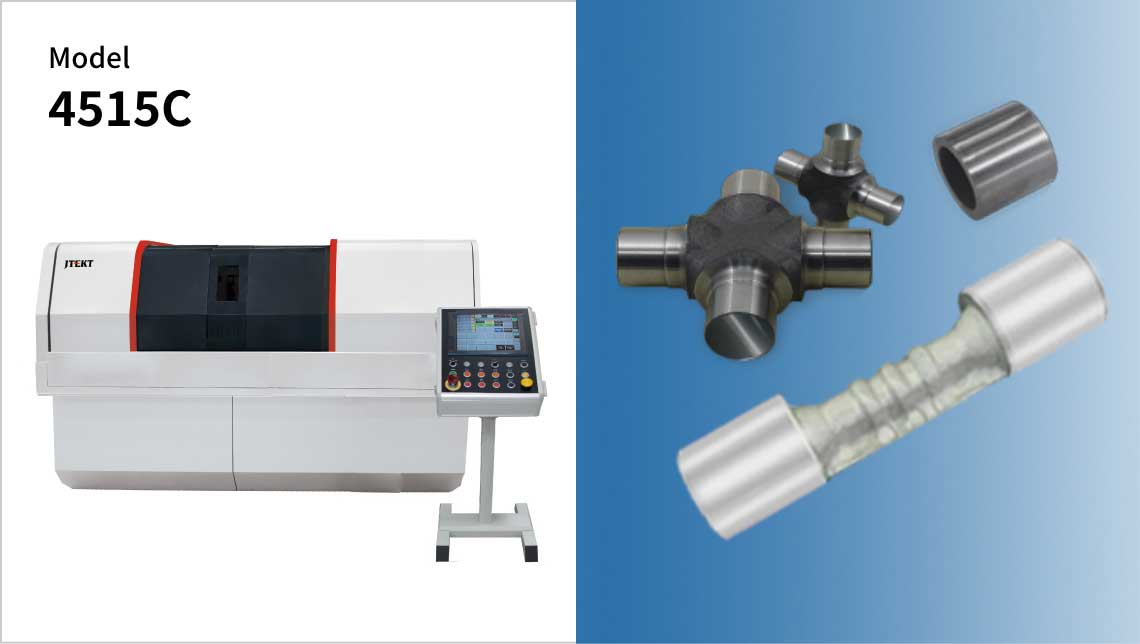

Model		4515C	6015C
Grinding Capacity	O.D.(Min.～Max.)[mm]	φ1.2～φ40	φ1.2～φ60
G.W. Size（㎜）	O.D.(Max.～Min.)[mm]	φ455～φ360	φ610～φ470
G.W. Size（㎜）	Width［mm］	150
Floor Space	W×D [mm]	2,460×1,580
Machine Weight	[Kg]	3,500	4,000

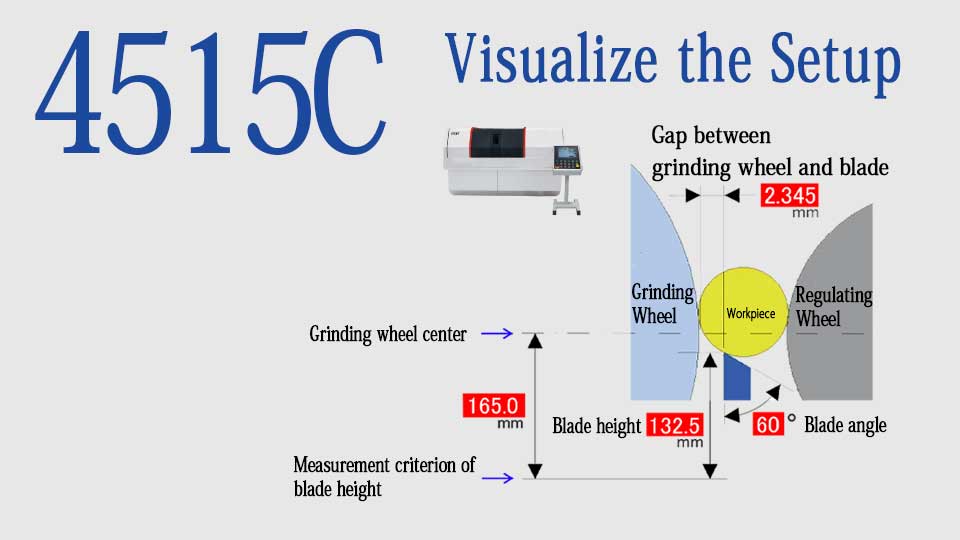

The pass line of workpiece during through-feed grinding can be confirmed on the operation screen and the setup can be quantified. Space-saving with φ610 grinding wheel (6015C) and GW spindle is a cantilever type. RW spindle can be replaced easily.

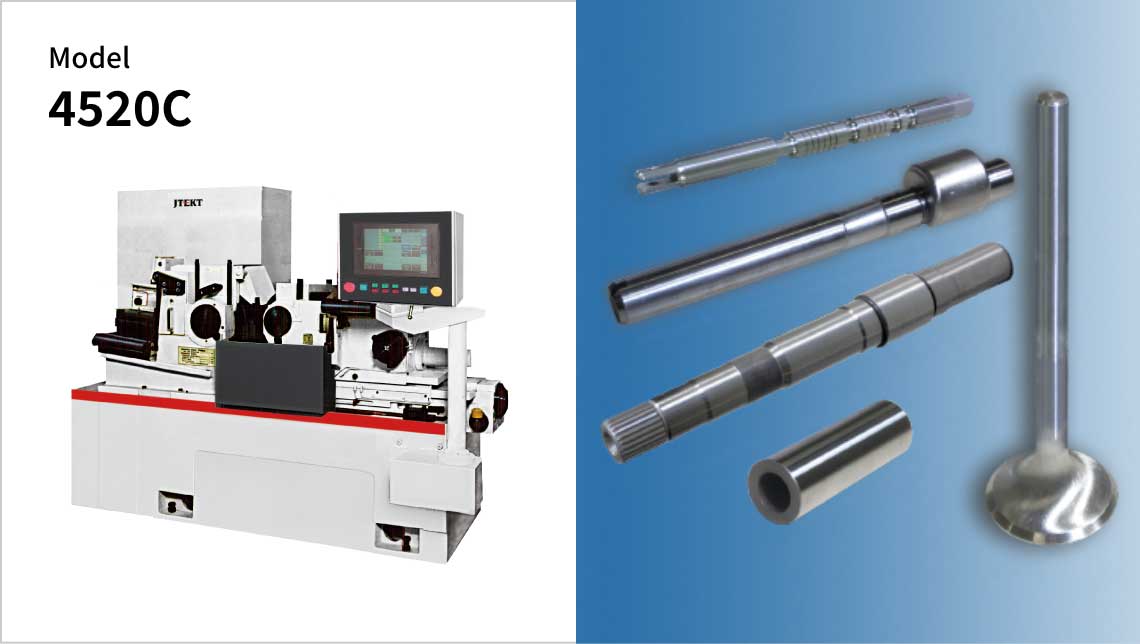

Model		4520C
Grinding Capacity	O.D.(Min.～Max.)[mm]	φ1.2～φ40
G.W. Size（㎜）	O.D.(Max.～Min.)[mm]	φ455～φ320
G.W. Size（㎜）	Width［mm］	205
Floor Space	W×D [mm]	2,460×1,580
Machine Weight	[Kg]	4,000

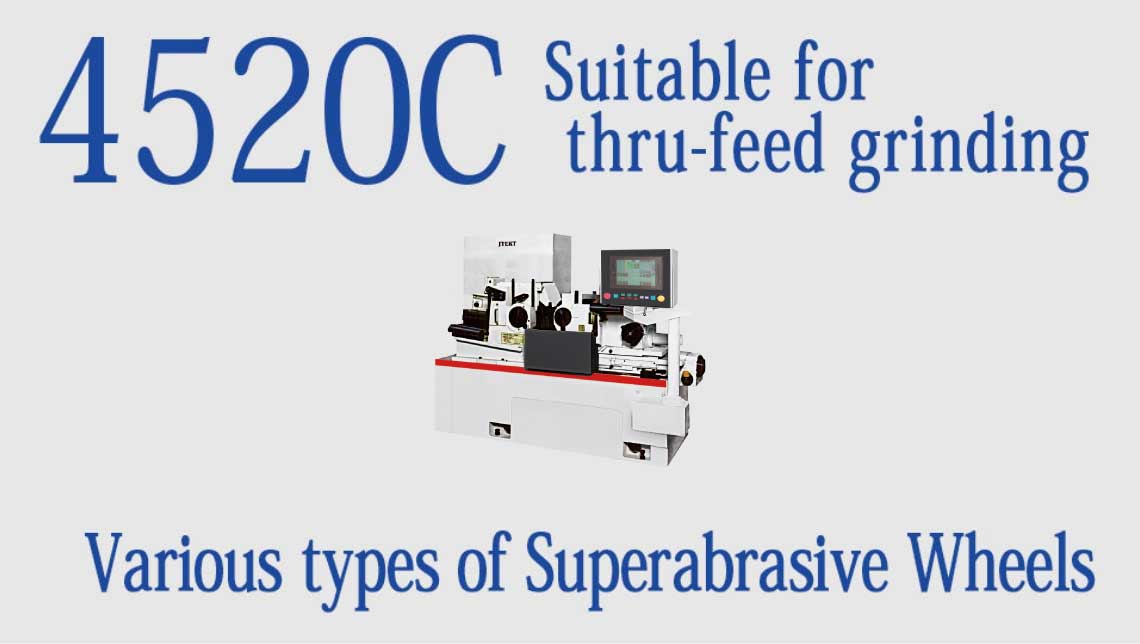

A wide range of super-abrasive wheel can be installed. Especially suitable for through-feed grinding.

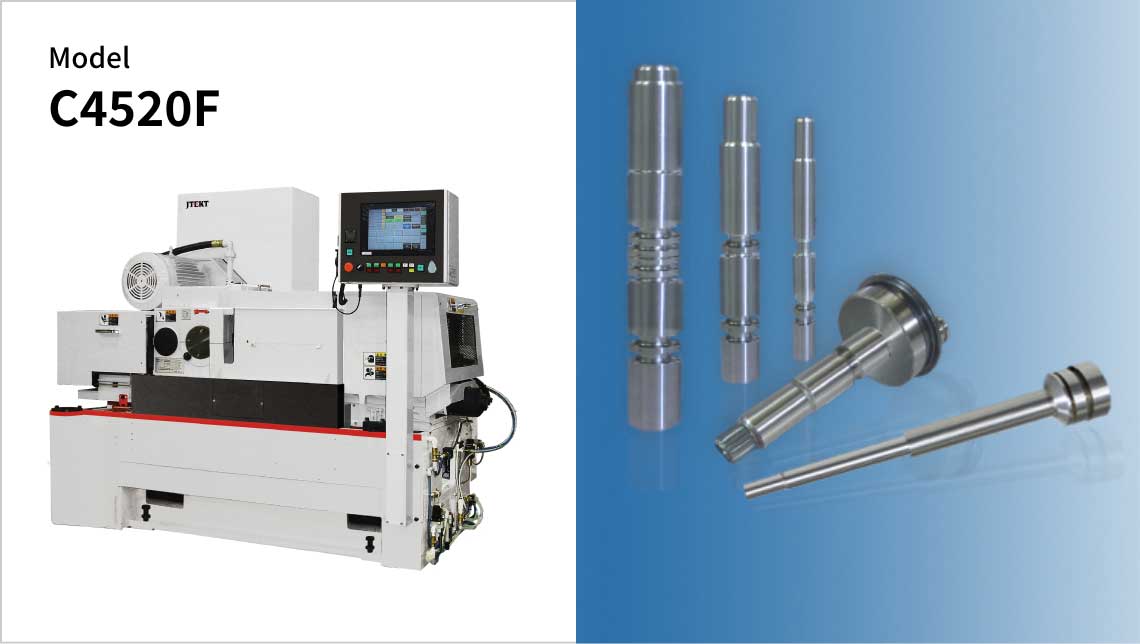

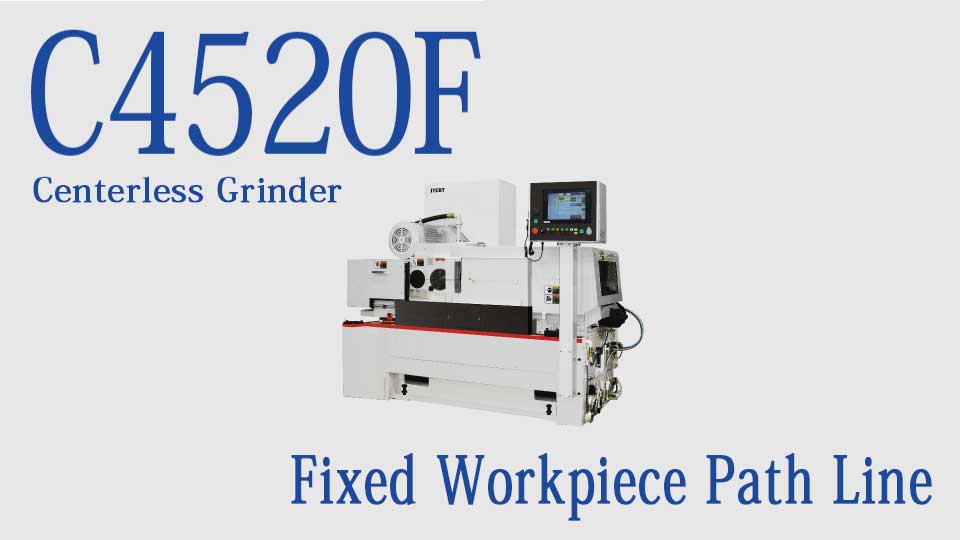

Model		C4520F	C4520FS
Grinding Capacity	O.D.(Min.～Max.)[mm]	φ1.0～φ50
G.W. Size（㎜）	O.D.(Max.～Min.)[mm]	φ455～φ320
G.W. Size（㎜）	Width［mm］	205
Floor Space	W×D [mm]	2,435×1,432
Machine Weight	[Kg]	4,500	5,000

Slant the Regulating wheel base to minimize changes in center height angles that affect circular formation and improve roundness stability.

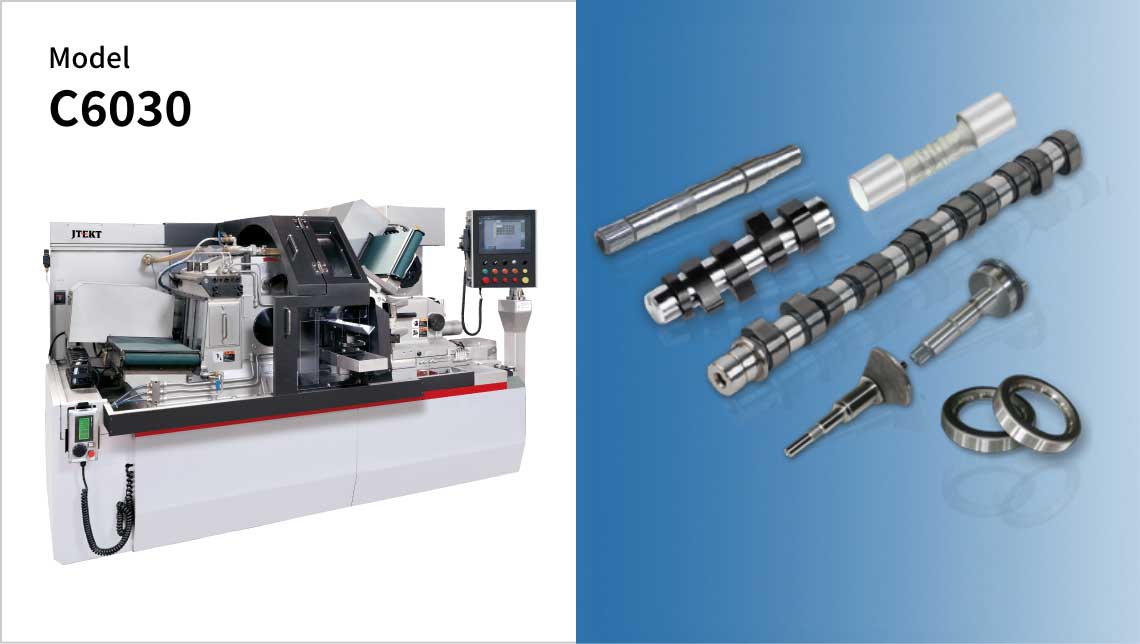

Model		C6020	C6030	C6040
Grinding Capacity	O.D.(Min.～Max.)[mm]	φ1.6～φ120
G.W. Size（㎜）	O.D.(Max.～Min.)[mm]	φ610～φ470
G.W. Size（㎜）	Width［mm］	205	305	405
Floor Space	W×D [mm]	2,900×2,180
Machine Weight	[Kg]	8,900	9,000	9,200

Quick setup change with screen operation guidance, automatically adjust the wheel position to fit different workpiece, control thermal displacement due to coolant circulation of grinding wheel base, high-precision dress with dress condition monitoring system, supports from high-precision grinding to heavy-duty grinding and loading system.

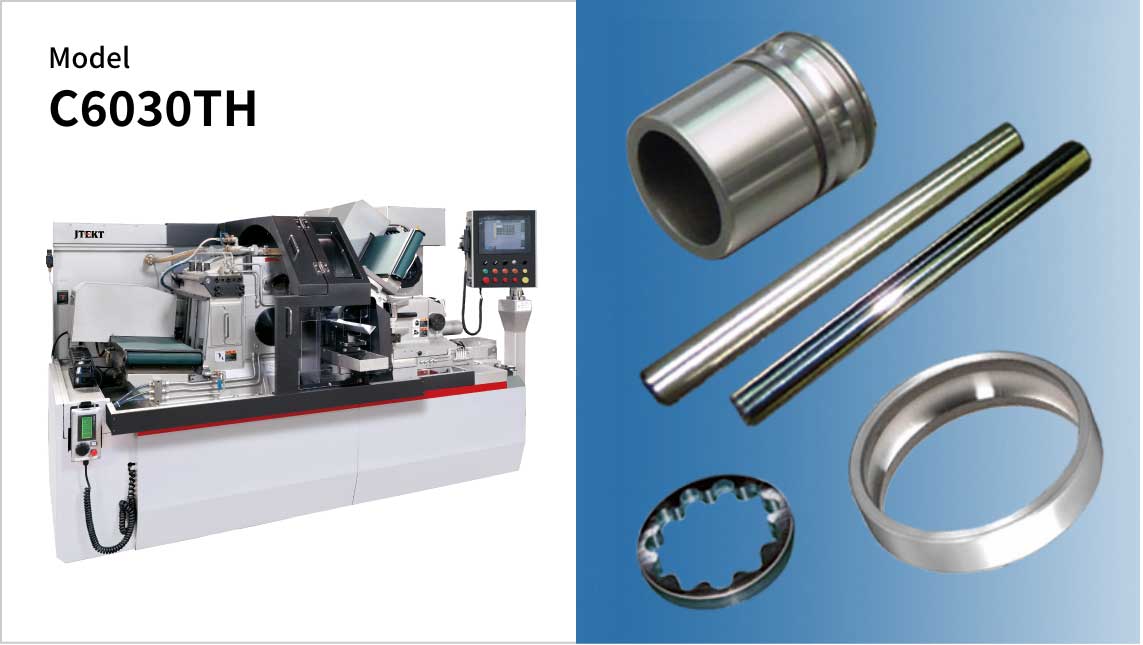

Model		C6030TH
Grinding Capacity	O.D.(Min.～Max.)[mm]	φ5～φ150
G.W. Size（㎜）	O.D.(Max.)[mm]	φ610
G.W. Size（㎜）	Width［mm］	305
Floor Space	W×D [mm]	3,350×2,470
Machine Weight	[Kg]	11,000

Through-feed Centerless Grinder that greatly reduces the time required for setup and adjustment through automation and guidance.

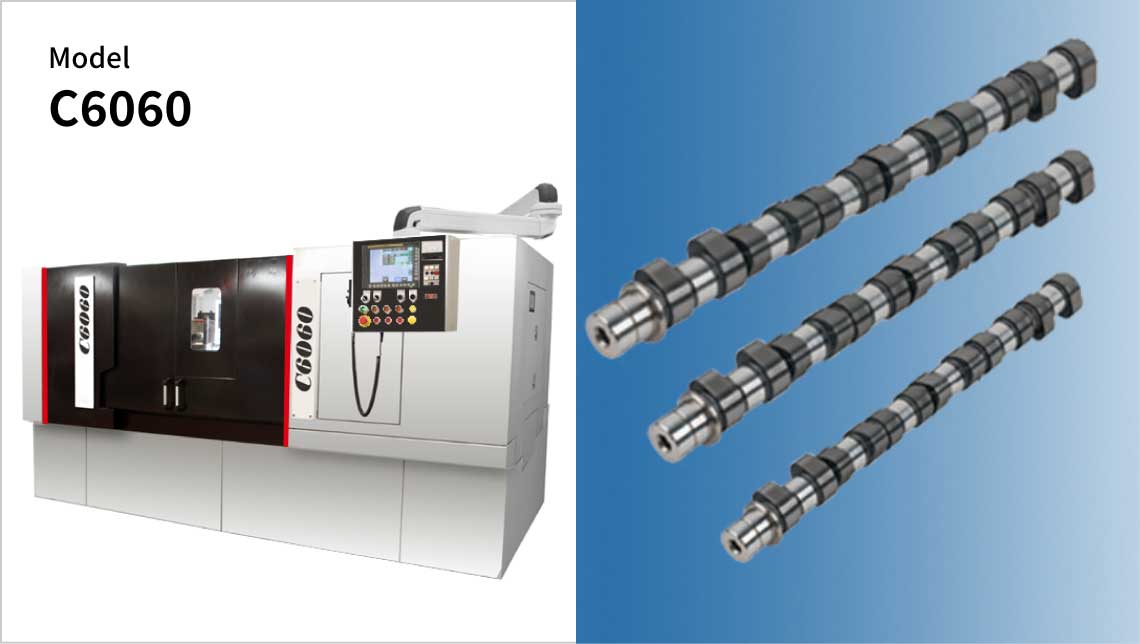

Model		C6060
Grinding Capacity	O.D.(Min.～Max.)[mm]	φ5～φ150
G.W. Size（㎜）	O.D.(Max.～Min.)[mm]	φ610～φ470
G.W. Size（㎜）	Width［mm］	610
Floor Space	W×D [mm]	4,670×1,765
Machine Weight	[Kg]	11,000

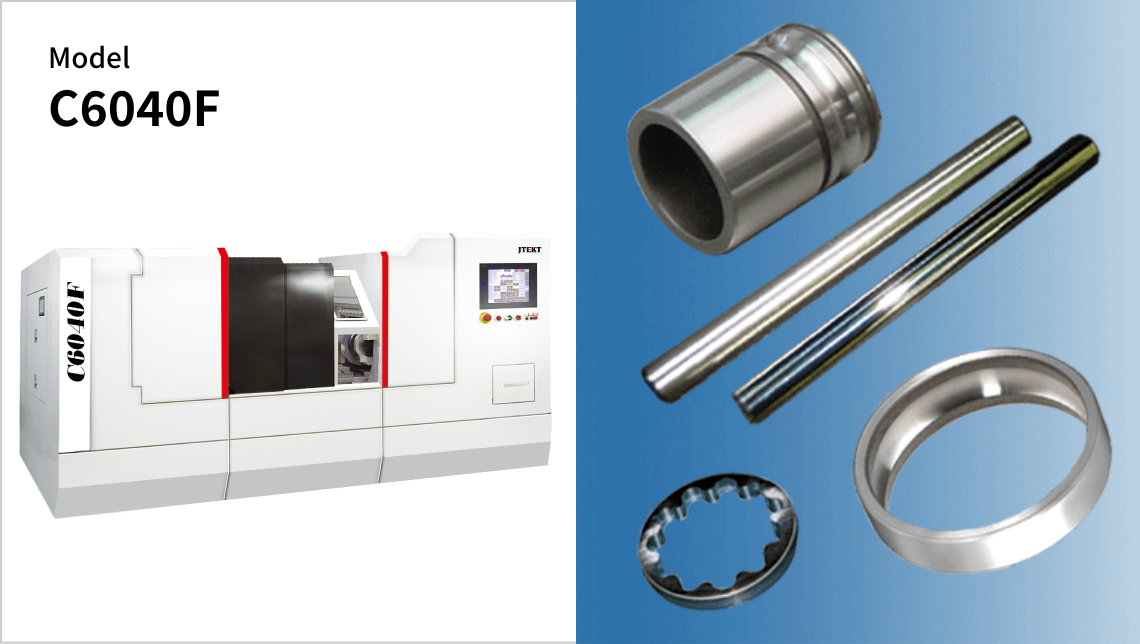

The C6040F is a fixed workpiece rest type centerless grinding machine ideal for grinding a wide variety of products in small lots.The setup time is greatly reduced with newly designed part height adjustment by NC-controlled vertaical blade movement and setup adjustment guidance function. The control cabinet can be freely arranged to suit the customer's factory floorspace.

Model		C6060
Grinding Capacity	O.D.(Min.～Max.)[mm]	φ5～φ150
G.W. Size（㎜）	O.D.(Max.～Min.)[mm]	φ610～φ470
G.W. Size（㎜）	Width［mm］	610
Floor Space	W×D [mm]	4,670×1,765
Machine Weight	[Kg]	11,000

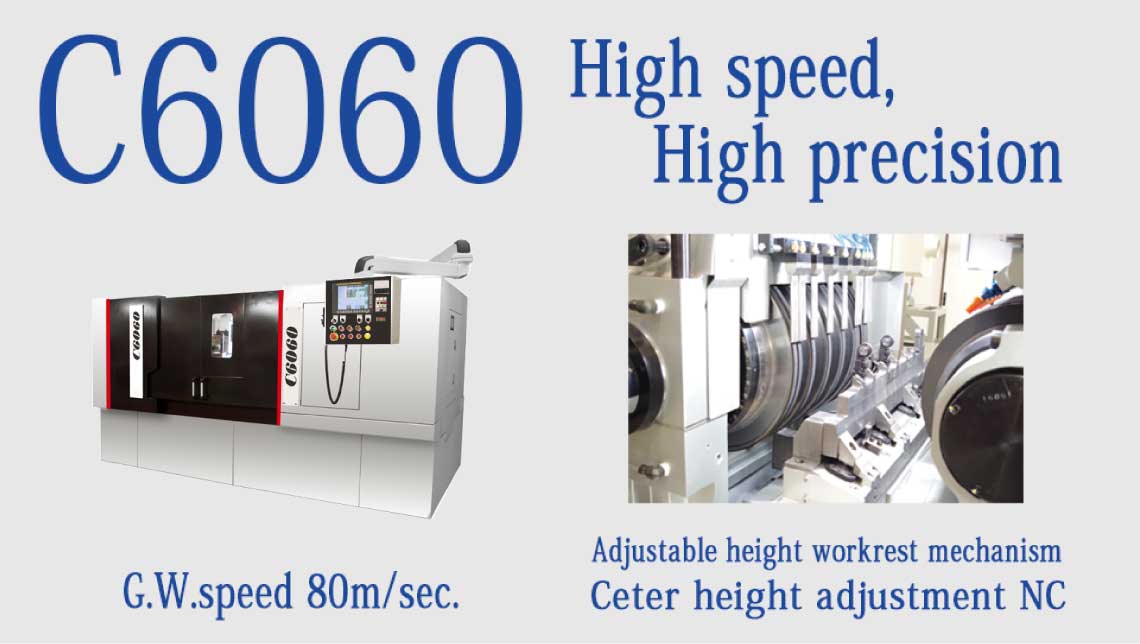

Wheel peripheral speed of 80m/sec. high-speed, high-precision grinding with CBN and thermal displacement control. Greatly reduced dressing time, significantly reduced wheel replacement time and blade replacement time.

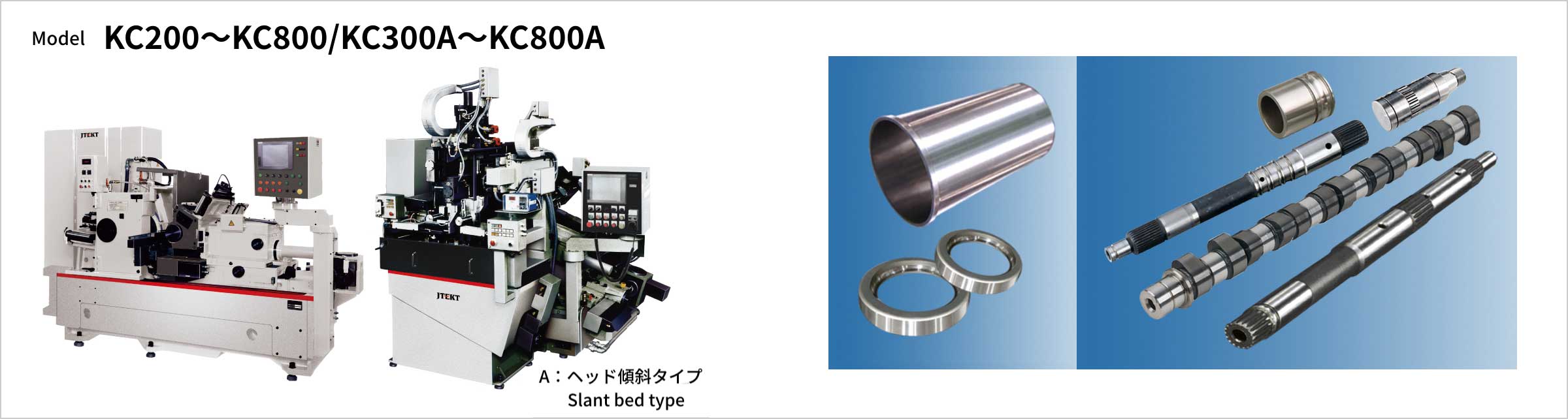

Model		KC200	KC300/300A	KC400/400A	KC500/500A	KC600/600A	KC700/700A	KC800/800A
Grinding Capacity	O.D.(Min.～Max.) [mm]	φ1.6～φ120		φ3.0～φ120	φ5.0～φ150
G.W. Size（㎜）	O.D.(Max.～Min.) [mm]	φ610～φ470
G.W. Size（㎜）	Width ［mm］	205	305	405	510	610	710	810
Floor Space	W×D [mm]	2,470×1,975			3,400×2,360
Machine Weight	[Kg]	6,000	7,000	8,000	10,000	10,500	11,000	13,000
