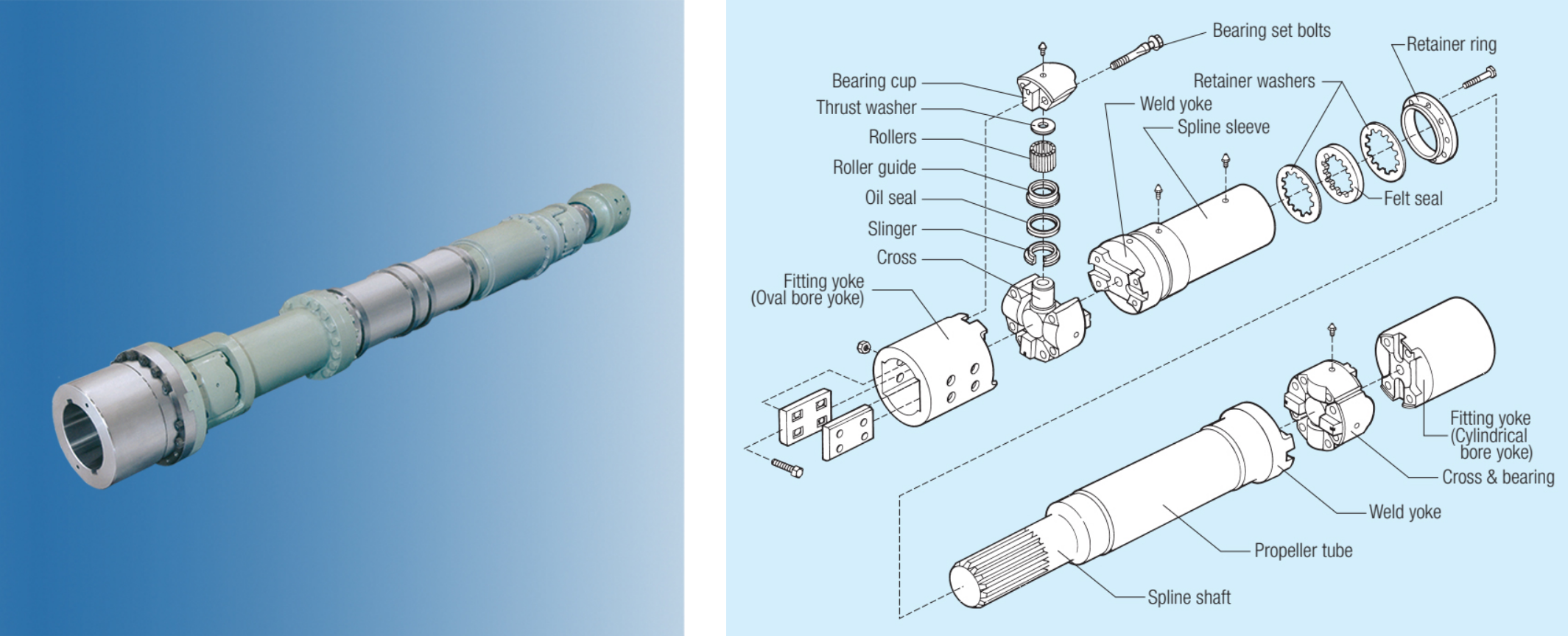

U Series
Mainly used in irreversible rolling mills such hot strip mill finishing stand.
Size Table
| Model No. | Rotational diameter（mm）D | Torque capacity（N・m） | Maximum operating angle（° ） |
||
|---|---|---|---|---|---|
| TR1) | TD2) | TS3) | |||
| U45073 | 365 | 45.5 | 255 | 510 | 4 |
| U4H078 | 390 | 5303 | 324 | 618 | 4 |
| U49084 | 420 | 62.7 | 392 | 775 | 4 |
| U53088 | 440 | 77.1 | 471 | 892 | 4 |
| U5E095 | 475 | 94.1 | 649 | 1170 | 4 |
| U55098 | 490 | 108 | 657 | 1270 | 4 |
| U5G105 | 525 | 127 | 814 | 1470 | 4 |
| U57108 | 540 | 140 | 1160 | 1780 | 4 |
| U59118 | 590 | 180 | 1350 | 2270 | 4 |
| U63128 | 640 | 229 | 1910 | 2920 | 4 |
| U6S132 | 660 | 255 | 2010 | 3030 | 4 |
| U6D138 | 690 | 285 | 2390 | 3710 | 4 |
| U65148 | 740 | 360 | 2690 | 4770 | 4 |
| U67152 | 760 | 398 | 3090 | 4840 | 4 |
| U6J156 | 780 | 416 | 3390 | 5690 | 4 |
| U69168 | 840 | 491 | 3920 | 6650 | 4 |
[Note] 1) TR indicates rated torque and is used for life calculation. ...Km (material confficient) = 1.
2) TD indicates the judgment reference torque for the maximum torque (Normal), and TD torque/Maximum torque >1.5 is desirable.
3) TS indicates the judgment reference torque for the breaking torque (Highest), and TS torque/Breaking torque >1.5 is desirable.
