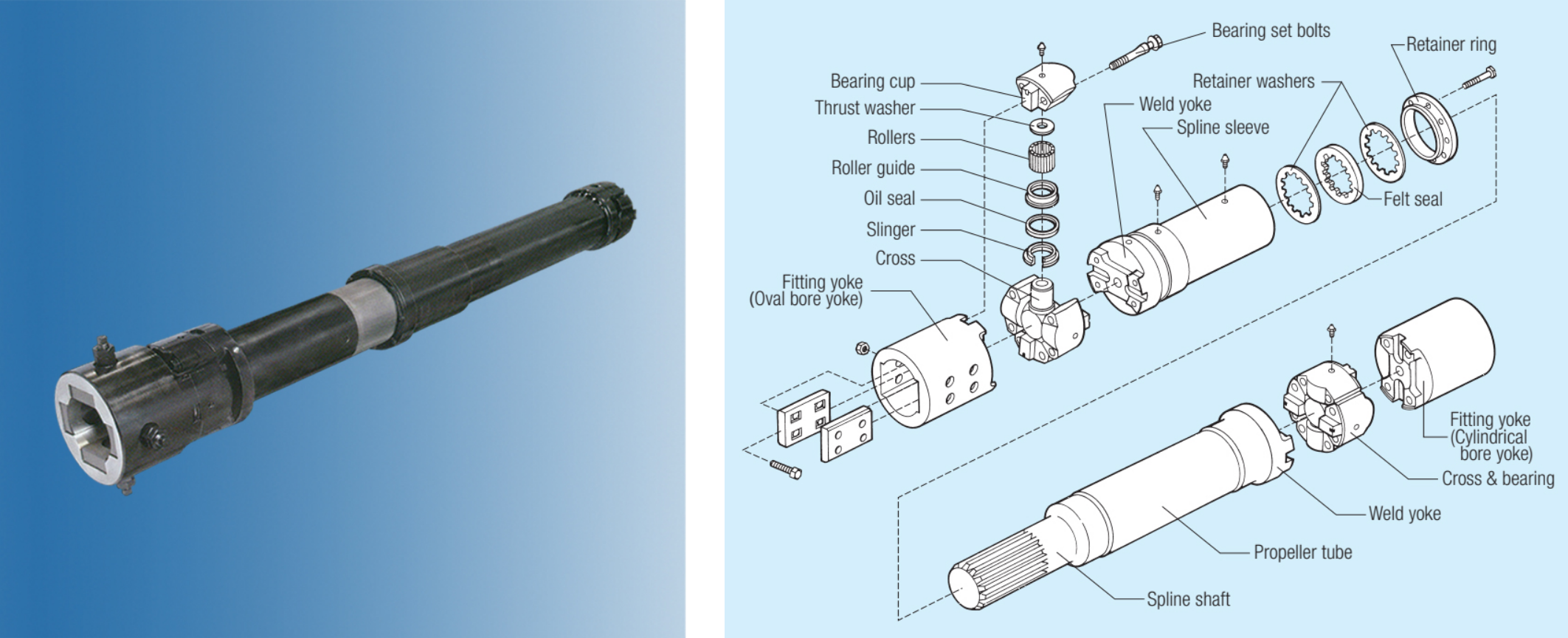

T Series
Used for applications that require a slide function in a narrow space.
Since the cross bearing on one side uses a hollow cross to secure the slide amount, it is used when there is an allowance in the rotational diameter on either the drive side or the driven side.
Size Table
| Model No. | Rotational diameter（mm）D | Torque capacity（N・m） | Maximum operating angle（° ） |
||
|---|---|---|---|---|---|
| TR1) | TD2) | TS3) | |||
| T42065 （D30044) | 325（220） | 16.9 | 39.2 | 108 | 10 |
| T48080 (D38060) | 400（300） | 30.8 | 98.1 | 284 | 10 |
| T54090 （D44070) | 450（350） | 45 | 167 | 451 | 10 |
| TZ56100 （D48080) | 500（400） | 74.1 | 255 | 667 | 8 |
| T58110 (D54090) | 550（450） | 82.5 | 373 | 951 | 8 |
| T60120 (D56100) | 600（500） | 111 | 520 | 1270 | 8 |
| T62130 (D58110) | 650（550） | 142 | 706 | 1770 | 6 |
| T66150 (D62130) | 750（650） | 212 | 1180 | 2840 | 6 |
[Note] 1) TR indicates rated torque and is used for life calculation. ...Km (material confficient) = 1.
2) TD indicates the judgment reference torque for the maximum torque (Normal), and TD torque/Maximum torque >1.5 is desirable.
3) TS indicates the judgment reference torque for the breaking torque (Highest), and TS torque/Breaking torque >1.5 is desirable.
