KF Series

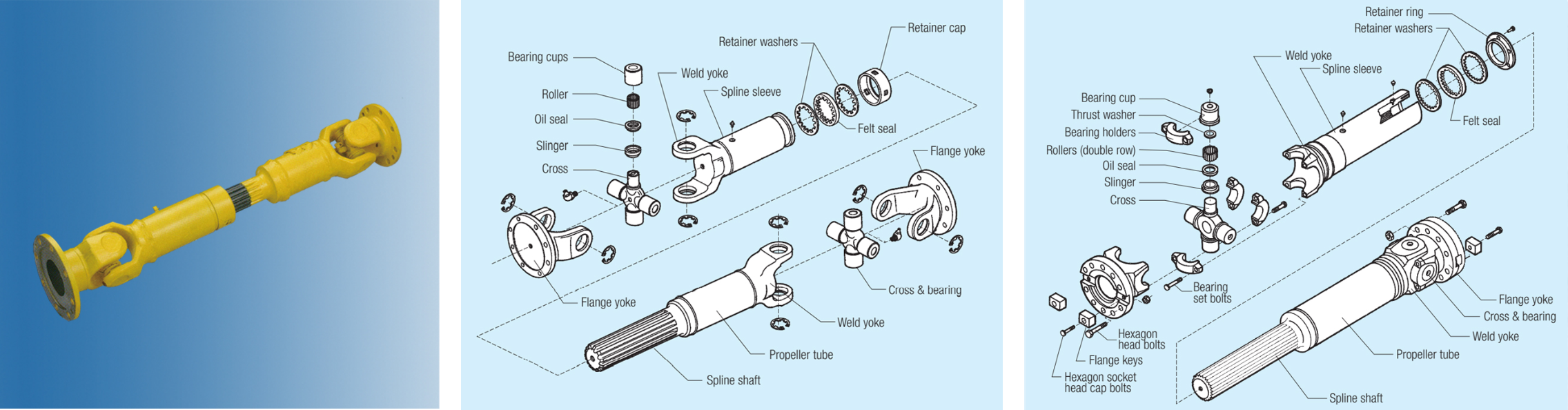

KF series has the following features depending on the rotational diameter.
● Rotational diameter = 180mm or less
Maximum operating angle of 18° to 30°, and is suitable for light load.
It is highly versatile for equipment and is economical because it is an integrated yoke.
● Rotational diameter = 225 to 435mm
Maximum operating angle is up to 15°, and is suitable for medium loads.
Since the yoke is a split type ,it is easy to replace the cross bearing.
Size Table
| Model No. | Illustration example |
Rotational diameter（mm）D | Torque capacity（N・m） | Maximum operating angle（° ） |
||
|---|---|---|---|---|---|---|
| TR1) | TD2) | TS3) | ||||
| 4 | 1 | 115 | 466 | 1260 | 3310 | 25 |
| 2 | 116 | 25 | ||||
| 5 | 1 | 122 | 851 | 1770 | 4470 | 10 |
| 2 | 125 | 25 | ||||
| 6 | 1 | 149 | 1090 | 2240 | 6400 | 25 |
| 2 | 152 | 25 | ||||
| 7 | 1 | 158 | 1650 | 3760 | 9190 | 20 |
| 2 | 165 | 25 | ||||
| 8 | 1 | 216 | 2200 | 5380 | 12200 | 21 |
| 8.5 | 1 | 175 | 2570 | 7520 | 13500 | 25 |
| 9 | 1 | 220 | 3450 | 9980 | 18900 | 25 |
| 10 | 1 | 226 | 5580 | 13600 | 33900 | 25 |
| 12 | 1 | 302 | 8060 | 19300 | 47400 | 25 |
[Note] 1) TR indicates rated torque and is used for life calculation. ...Km (material confficient) = 1.
2) TD indicates the judgment reference torque for the maximum torque (Normal), and TD torque/Maximum torque >1.5 is desirable.
3) TS indicates the judgment reference torque for the breaking torque (Highest), and TS torque/Breaking torque >1.5 is desirable.
