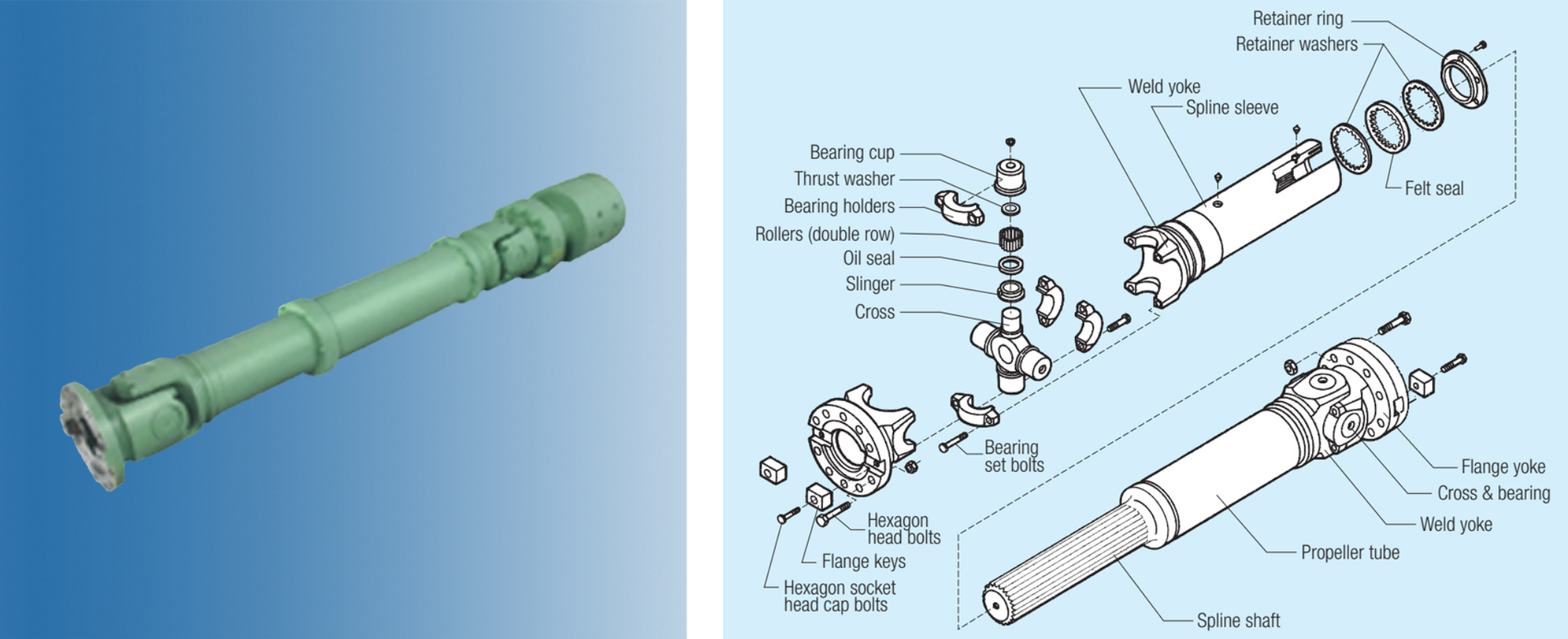

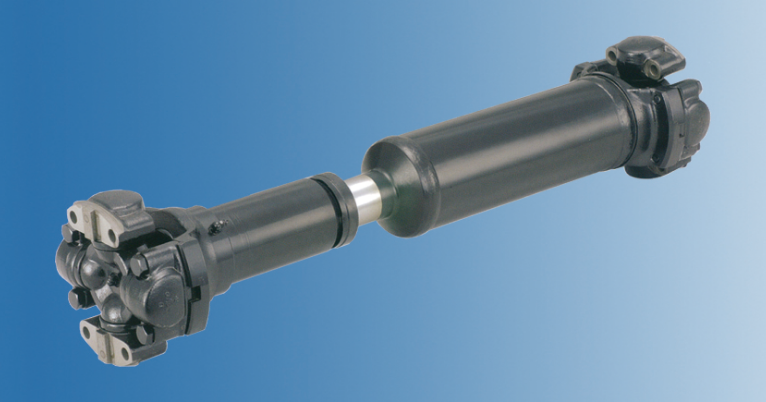

CS Series
Optimized for maximum performance in irreversible operating equipments such as steel bar, wire rolling mills and continuous casting equipment.
Since the life and strength are maximized, a smaller size can be selected compared to conventional products.
Size Table
| Model No. | Rotational diameter（mm）D | Torque capacity（N・m） | Maximum operating angle（° ） |
||
|---|---|---|---|---|---|
| TR1) | TD2) | TS3) | |||
| CS180 | 180 | 5710 | 32100 | 59000 | 10 |
| CS200 | 200 | 8170 | 44100 | 81000 | 10 |
| CS225 | 225 | 11600 | 62800 | 115000 | 10 |
| CS250 | 250 | 15700 | 86100 | 158000 | 10 |
| CS285 | 285 | 23100 | 128000 | 234000 | 10 |
[Note] 1) TR indicates rated torque and is used for life calculation. ...Km (material confficient) = 1.
2) TD indicates the judgment reference torque for the maximum torque (Normal), and TD torque/Maximum torque >1.5 is desirable.
3) TS indicates the judgment reference torque for the breaking torque (Highest), and TS torque/Breaking torque >1.5 is desirable.
